Takljus

Vasco Ceiling Light

Beskrivning:

VASCO -serien är en låg bländning/UGR<19 and IP20 ceiling light fixture the classic round shape is simple and elegant, the low-glare lighting design makes it suitable for a variety of indoor applications 120LM/W and UGR<19 features make the more and more client interest in the vasco ceiling light.

Särdrag:

>Upp till 120 lm/w@ 2400 lm

>Aluminium rund form + prismatisk diffusor ugr<19

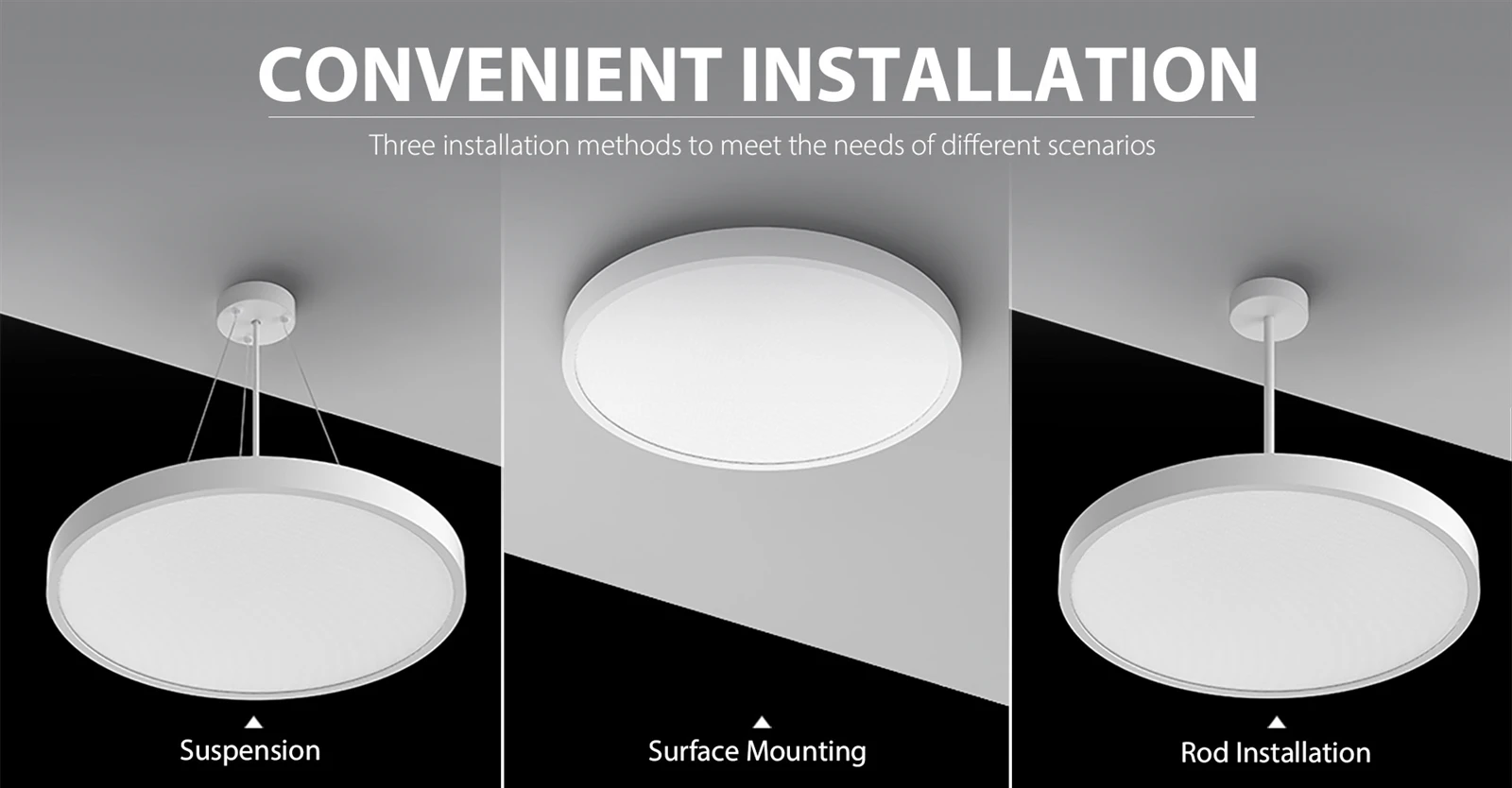

>Korsningsbox för enkel installation

>Olika funktioner: Standard On-Off, 1-10 V, Dali Dimning, Microwave Sensor, Emergency

>5 års garanti

Send Inquiry

Download

Description

Technical Parameters

INTRODUKTION:

VASCO -tak LED -ljus, med sin 120 lm/W -effektivitet, har en rund aluminiumdesign och prismatisk diffusor för UGR<19 glare reduction. It is easily installed via the integrated junction box. A variety of functional options are available to meet different needs. A 5-year warranty ensures quality. The modern lighting solution that illuminates every aspect of your life.

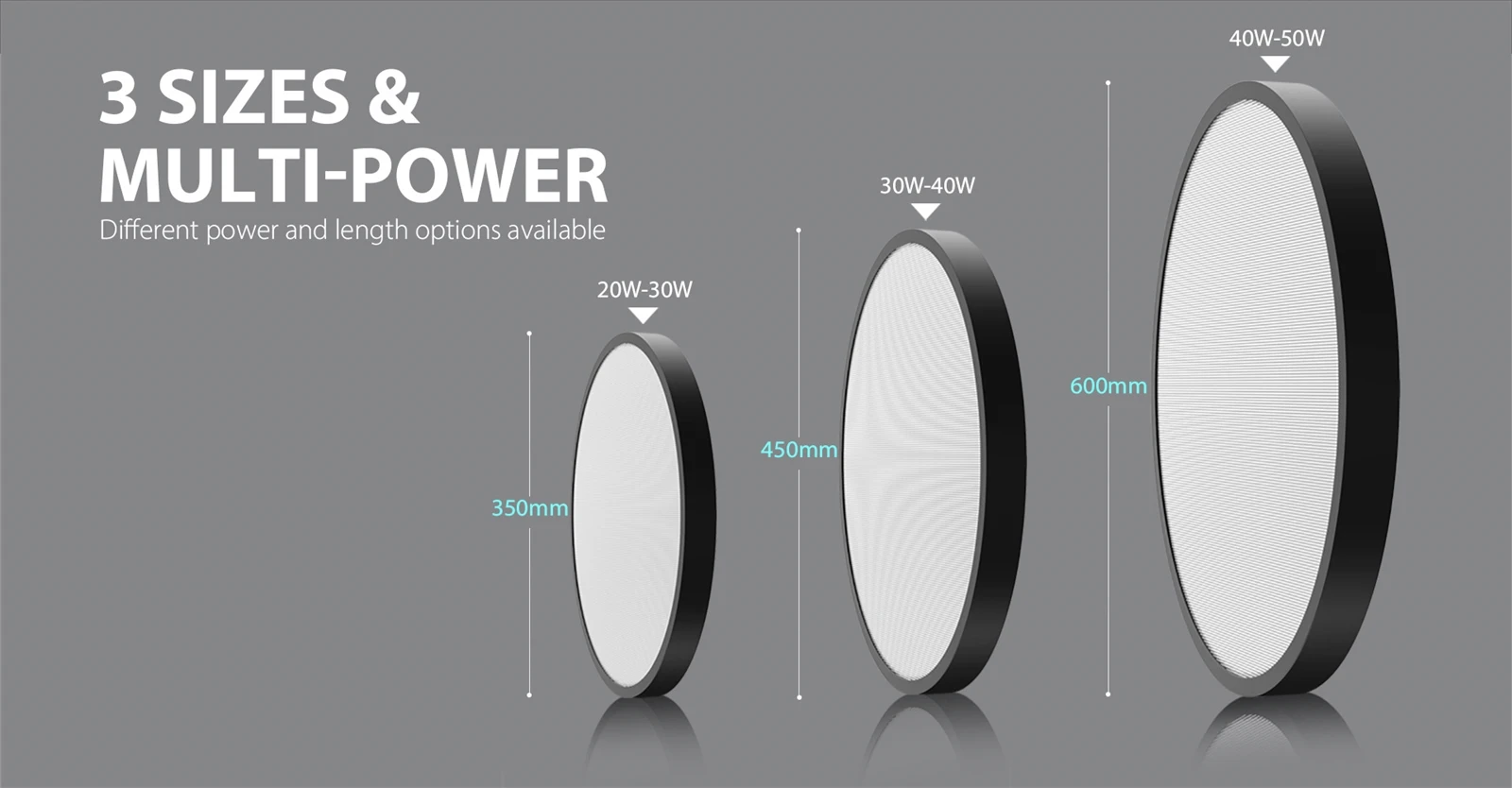

Beställningskod	Nominell kraft	Lm/w	Lumen	SDCM/RA	Fungera	Produktdimension	Gw/ctn	ANTAL/CTN
Cl 100-35 w-kt 1-30 f01	20W/30W	typ.120	typ. 2400/3600	<3 / Ra80/90	F1-F6	D350*H63	12,6 kg	5st
Cl 110-45 w-kt 1-40 f01	30W/40W	typ.120	typ. 3600/4800	<3 / Ra80/90	F1-F6	D450*H63	13,6 kg	5st
Cl 120-60 w-kt 1-50 f01	40W/50W	typ.120	typ.4800/6000	<3 / Ra80/90	F1-F6	D600*H63	14,6 kg	5st
